《mikroBasic PRO プログラム》

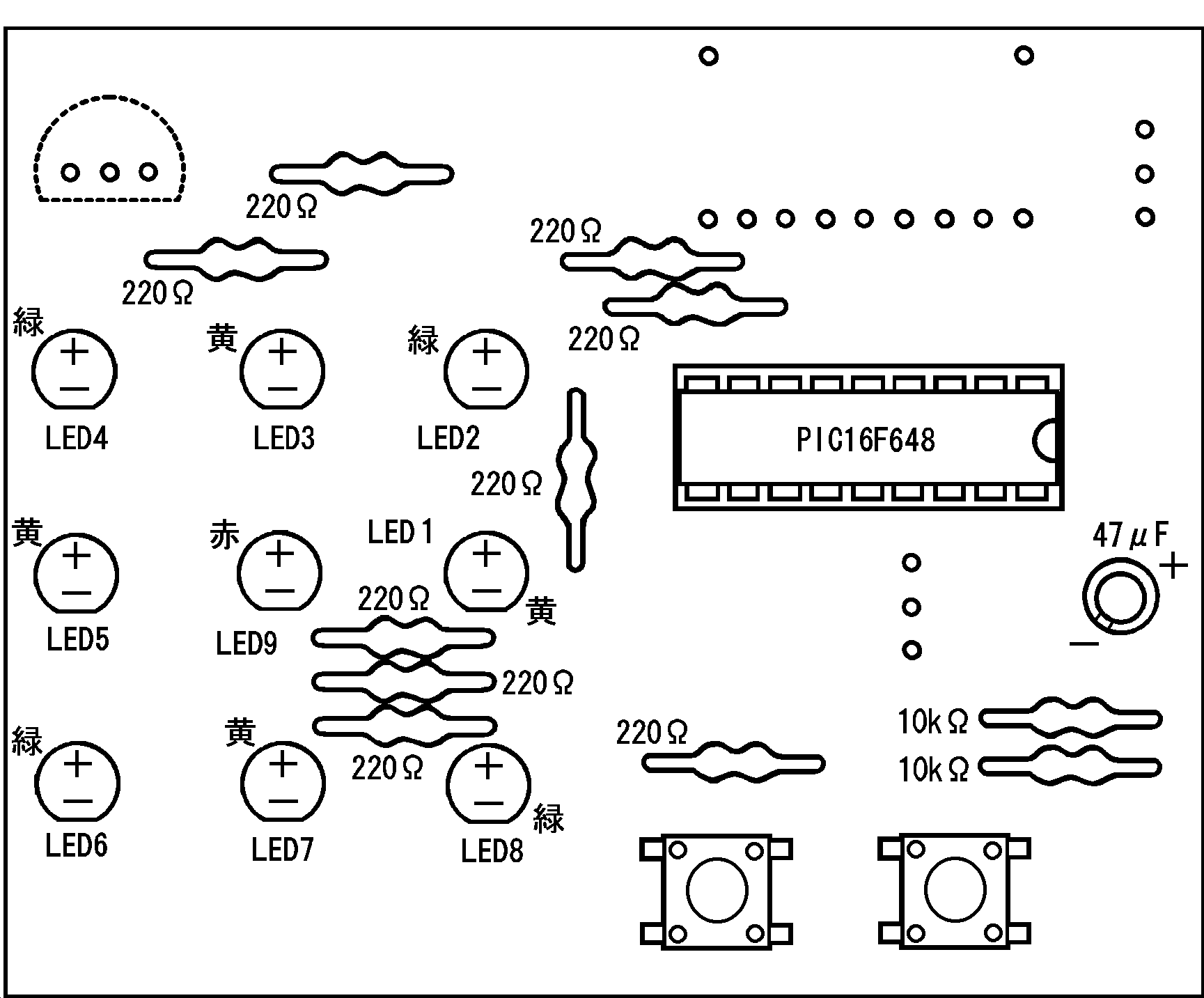

program SAIKORO648
' Declarations section
dim i as integer
dim n as integer
dim LDA as byte[7]
dim LDB as byte[7]
main:
' Main program
LDA[0] = %00000000
LDA[1] = %00000000
LDA[2] = %00000100
LDA[3] = %00000000
LDA[4] = %00000100
LDA[5] = %00000000
LDA[6] = %00000100
LDB[0] = %01010101
LDB[1] = %10111011
LDB[2] = %10101010
LDB[3] = %10101010
LDB[4] = %00100010
LDB[5] = %10001000
LDB[6] = %00000000
CMCON=%00000111
TRISA=%00000011
TRISB=0
n=0
mLoop:
PORTA=LDA[n]
PORTB=LDB[n]
Delay_ms(100)
n=n+1
if PORTA.1=0 then
goto DISP
end if
if n=6 then
n=0
end if
goto mLoop
DISP:
for i=1 to 6
PORTA=LDA[i]
PORTB=LDB[i]
Delay_ms(1000)
next i
PORTA=LDA[n]
PORTB=LDB[n]
PORTA.3=1
waitSW:
if PORTA.0=0 then
goto mLoop
end if
goto waitSW
end.
電子サイコロのシミュレーション ダウンロード
PIC-BASICシミュレーション ダウンロード
